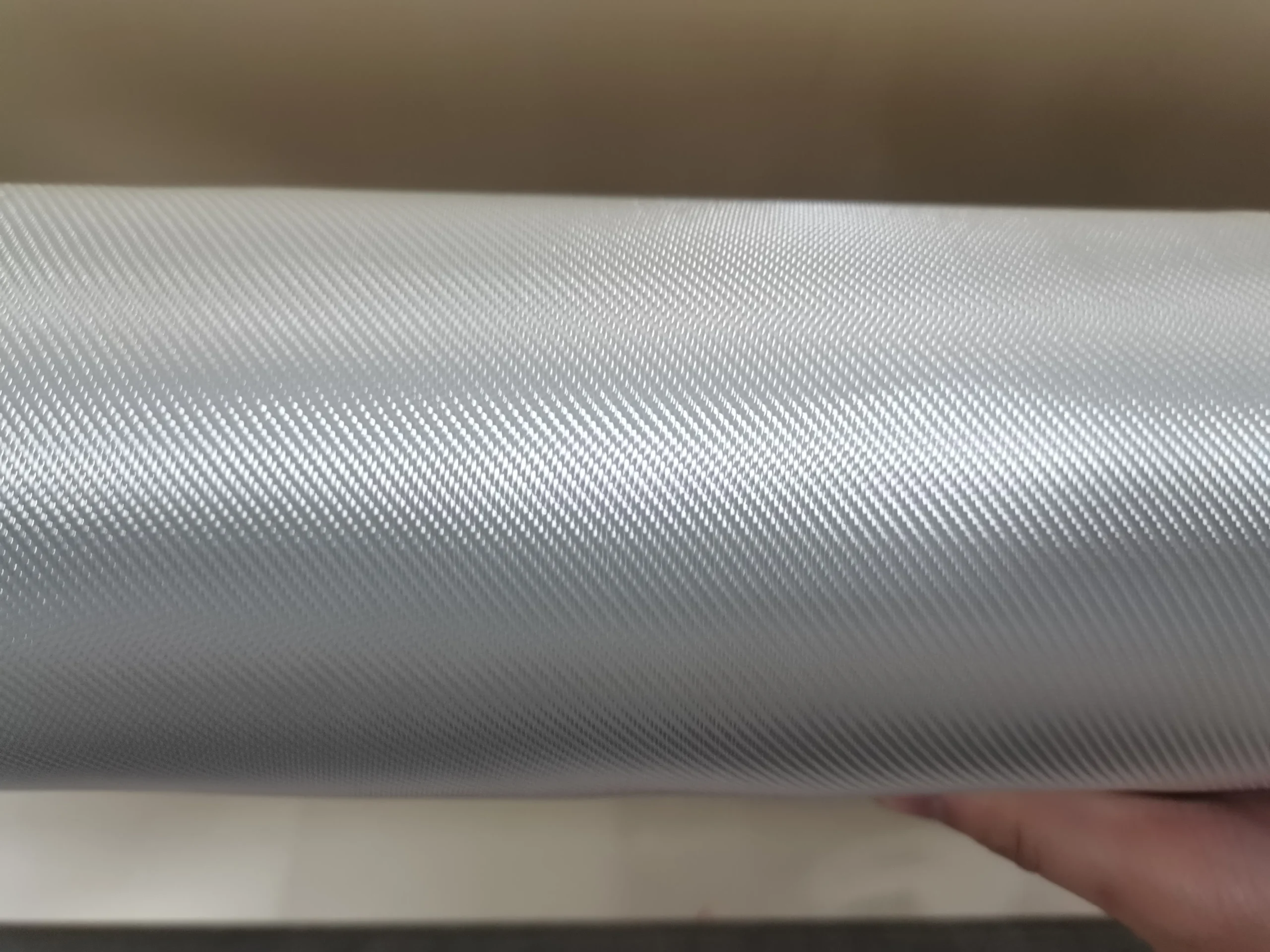

E GLASS WOVEN CLOTH -TWILL
Introduction：
Fiber glass light woven cloth has made by fiber glass yarn,weaved by high speed weave machine,can compatible with Epoxy or Polyester and Vinyl Resin,produce some light weight FRP laminate products,like as surfboard,golf rod,boats etc.Also use for some insulation products.
Properties：
- Thickness even
- Good wetting out
- Good mold ability
| SPEC NO. | Mass
(g/m2) |
Construction | Density
(end/cm) |
Tensile Strength | Tex | |||
| warp | weft | warp | weft | warp | weft | |||
| EWT100 | 110±10 | TWILL | 16±1 | 15±1 | ≥400 | ≥400 | 33 | 33 |
| EWT160 | 160±12 | TWILL | 12±1 | 12±1 | ≥700 | ≥650 | 66 | 66 |
| EWT200 | 200±20 | TWILL | 16±1 | 14±1 | ≥900 | ≥700 | 66 | 66 |
| EWT400 | 400±32 | TWILL | 8±0.5 | 7±0.5 | ≥1200 | ≥1100 | 264 | 264 |
| EWT400 | 400±32 | TWILL | 6±0.5 | 6±0.5 | ≥1200 | ≥1100 | 330 | 330 |
